Settings

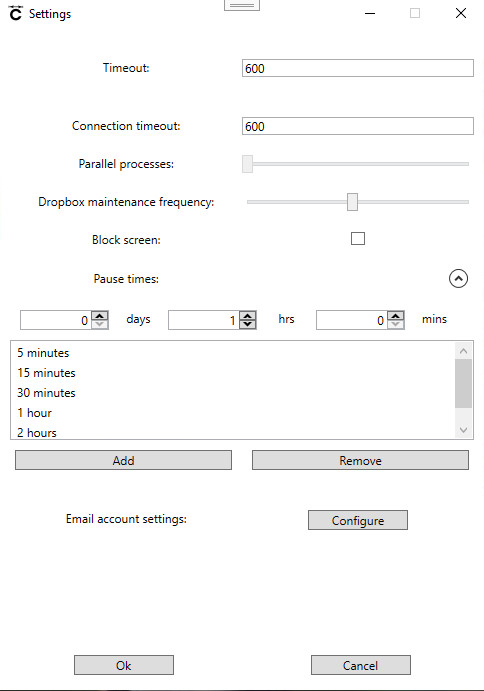

Cadify Service has several tunable features through its Settings window. The settings window is available through the context menu by clicking on Settings.
Simple settings
Once the Settings window is opened, users can see avaiable options grouped in two sections. The first section (above the expandable content) contains simple settings.
Timeout
Timeout defines how much time Cadify Service waits for a job to complete before halting it. It must be set carefully, as if a model with its drawings cannot be generated under this threshold value by SolidWorks, all jobs will time out and fail.
The Timeout value is expressed in seconds.
The reason behind the Timeout parameter is that neither SolidWorks nor Microsoft Excel can reliably communicate if they are stuck mid-process or halted due to an error. Cadify Service has no other way to determine when to forcefully stop those processes if they fail to complete their tasks.
The Timeout parameter is used as a fallback or default value by Cadify Service. If a product has enough successful generations to calculate an average estimated time to complete, then 150% of that time is used as timeout threshold.
Connection timeout
Connection timeout defines how much time Cadify Service waits for Cadify Cloud if it cannot estabilish a connection. Typical reasons behind the unability to connect is Dropbox downtime or local Internet connection issues. Until the Connection timeout threshold value is reached, Cadify Service cannot time out a job in the file upload phase.
The Connection timeout value is expressed in seconds.
The reason behind the Connection timeout parameter is that Cadify Service must be able to upload generated files to Cadify Cloud before moving to the next job. If Cadify Service cannot estabilish a connection to Cadify Cloud, it must not wait indefinitely for the connection.
Parallel processes
Cadify Service is prepared to run multiple jobs in parallel to speed up generations and product serving. Unfortunately, neither SolidWorks, nor Microsoft Excel support parallel processing Cadify products.
Until all third-party integrations support parallel processing in a feasible way for Cadify, the Parallel processes option is locked to 1.
Dropbox maintenance frequency
Cadify Cloud uses Dropbox to store and serve Cadify files, including job requests and generation results. Due to implementation details in Dropbox APIs, some reqests can go undetected in certain circumstances.
To avoid losing generation requests, Cadify Service scans Cadify Cloud for any undetected job requests in intervals defined by the Dropbox maintenance frequency option. The lower it is, the more often Cadify Service does extra scans to Dropbox.
The Dropbox maintenance frequency value is expressed in seconds.
It is recommended to keep Dropbox maintenance frequency above 30, as too frequent scanning can result in rate limiting by Dropbox and slowing down Cadify Service.
Block screen

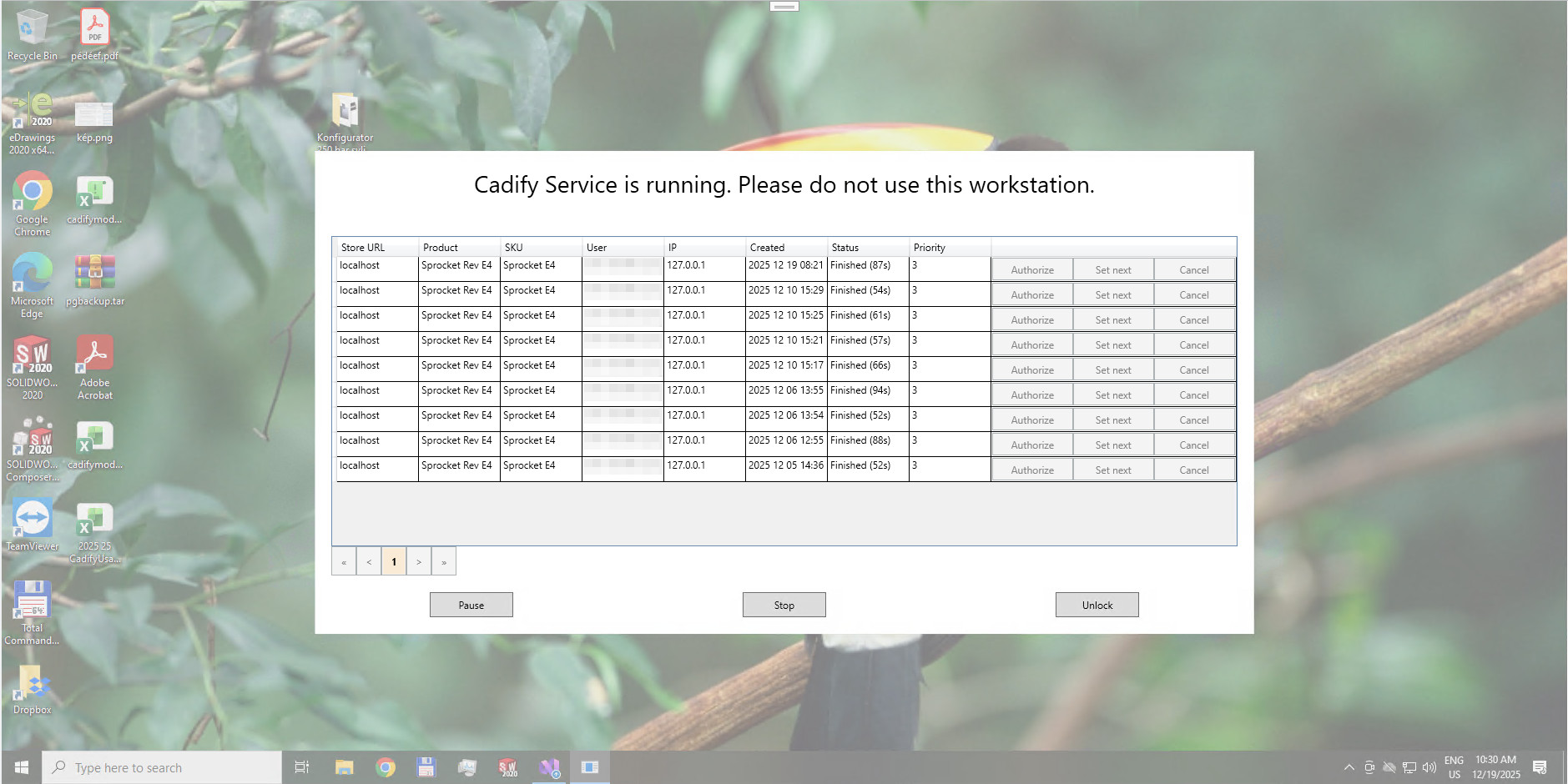

Screen blocking is a convenience functionality in Cadify Service where a full-screen job manager stays active all the time. This allows operators to see currently running jobs without any disturbances from the operating system or other installed software (including SolidWorks and Microsoft Excel).
When screen blocking is on, operators can freely manage running jobs, pause and resume Cadify Service, and stop screen blocking if they need to access any other system functionality on the workstation.
Screen blocking was designed to alert any company personnel sharing the same workstation that Cadify Service is currently running and serving job requests. By bringing Cadify Service to the front, the chance of accidently running a process which might hurt finishing jobs is minimized.
Cadify Service state management
Cadify Service internal states can be managed through its context menu by clicking on the appropriate items.
Start service
Starts the service, if it's stopped but a connection to a Cadify Web store is active. Cadify Service cannot be started if there is no active connection or it is already started.
Pause service
Pauses the service for a predefined interval. If the chosen interval is definite, Cadify Service will automatically resume to work after it. The available intervals can be modified through the Settings window under the Pause times expandable section.
If the service is paused for a definite interval, the resume time is communicated with users on Cadify Web stores connected to the current service.
Resume service
Resumes the service if it is currently paused. Manual resuming is only mandatory if the service has been paused indefinitely.
Email account

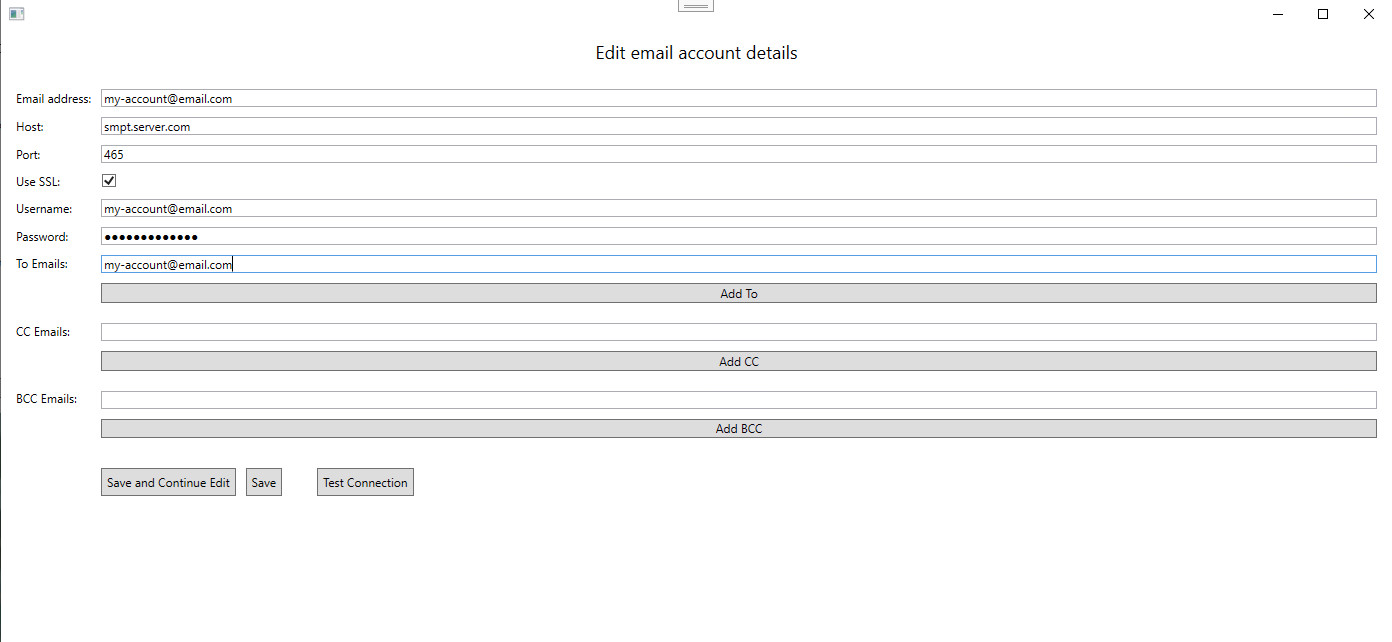

Cadify Service can be configured with an SMTP email account for sending emails. This configuration is essential for quick fault reactions. If Cadify Service encounters an error requiring user intervention, it sends out an email using the email configuration.
The To Emails, CC Emails, and BCC Emails input fields contain the recipient addresses in case of serious Cadfiy Service faults. Those addressess will receive notifications with the error and suggested ways to troubleshoot.
The rest of the form fields are required for the SMTP connection. It must contain correct values for the sender's account.
It is recommended to test the provided values with the Test Connection button before relying on automatic error email notifications.
